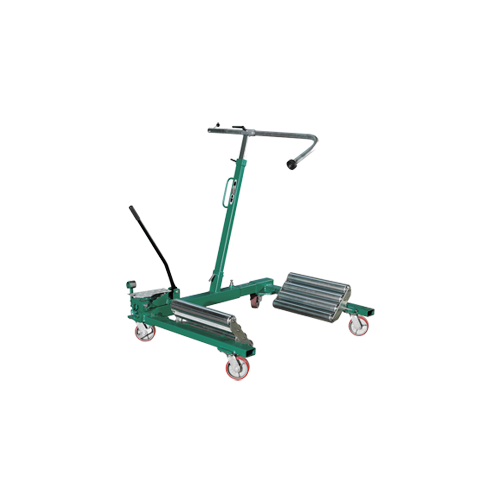

The Compac WD 1600 wheel Dollie has been designed to make the job of removing and reinstalling large wheels on agricultural and earth moving machinery both safe and easy.
The WD 1600 is capable of handling wheels from 1150mm to 2150 in diameter and up to 1050mm in width and has a weight capacity of 1600Kgs. The unit has a double acting hydraulic system which is hands free when shifting between raising and lowering for safe and controlled use.
The WD 1600 is fitted with 4 large rollers to for easy handling of tyres with deep treads. The adjustable arm holds the wheel securely and prevents the load from being dislodged whilst moving. The WD 1600 can be disassembled in a matter of seconds making it portable enough for moving between work sites.
Watch Video
Features:
* 3 year warranty
* Hands free hydraulic system to switch between lowering and raising
* 1600Kg Capacity
* 4 large roller for tyres with deep treads
* Handles wheels from 1150mm to 2150mm in diameter
* Takes tyre up to 1050mm wide
* Adjustable arm fitted for holding wheel in place
* Easy to dismanlte making it transportable to different work sites
* Full spare parts back up
| Model | Max(Kg) | A(mm)Min /Max |
B(mm)Min /Max |
C(mm) |
D(mm)Min |
E(mm)Min /Max |
F(mm)Min /Max |
Kg |
| WD1600 | 1600 | 1365/2170 | 190/1080 | 1285 | 1275/1875 | 95/290 | 695/890 | 156 |
New
Normal
The Compac WD1600 wheel Dollie has been designed to make the job of removing and reinstalling large wheels on agricultural and earth moving machinery both safe and easy.
